Compatibility

• These rings are for use with 110 BCD 5 arm cranksets.

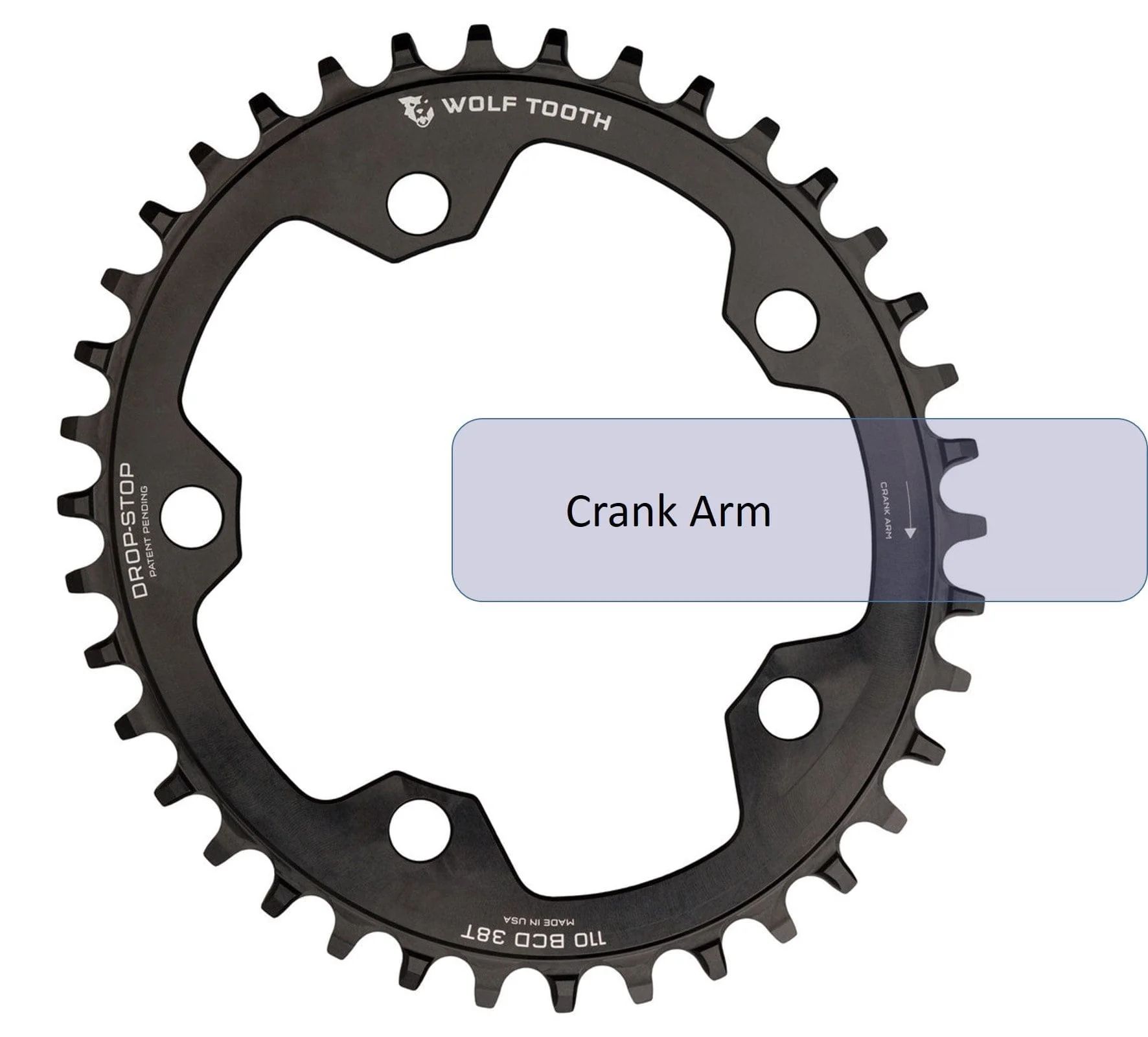

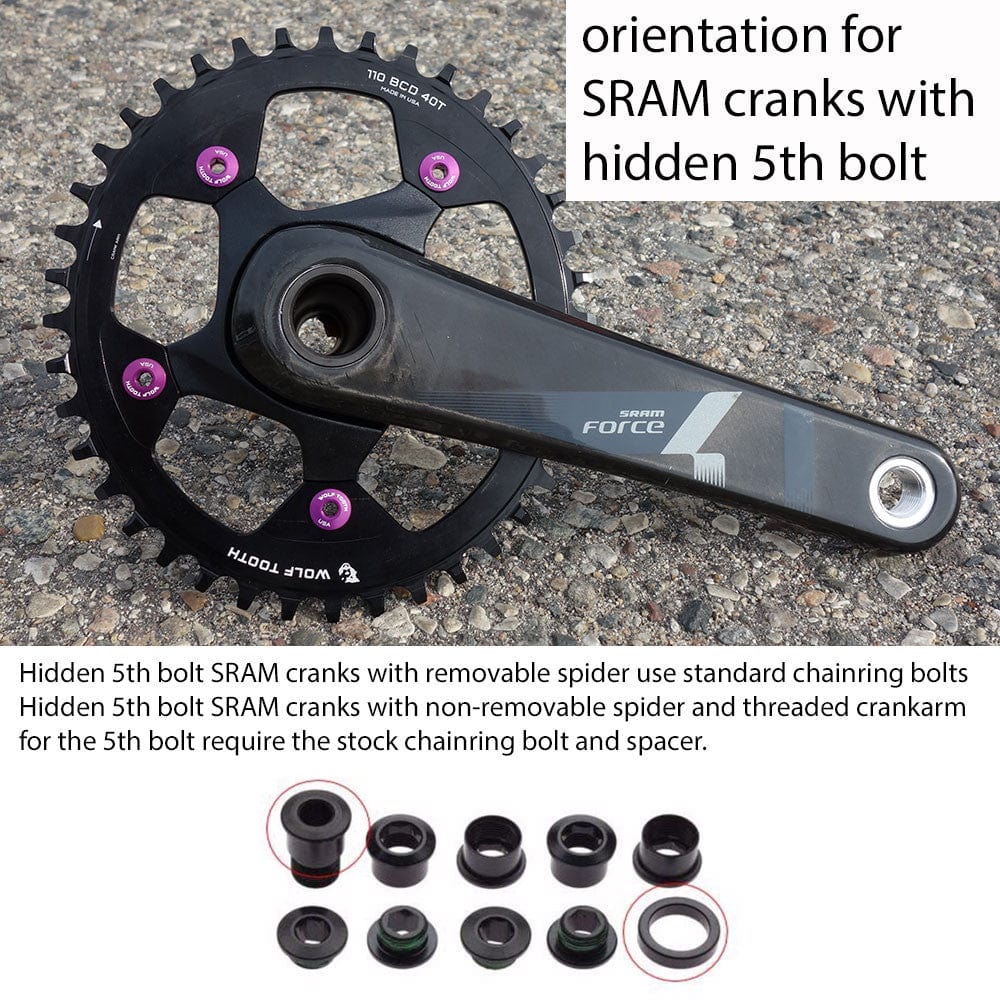

• Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
• Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
• Chainline - varies - these rings can be mounted in either the big or small ring position on a double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring)
• Can be mounted in either the big or small ring position of a double crankset given chainstay clearance in the small ring position.
• Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.


Recommendations



• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.
• Recommend the use of a clutch style rear derailleur for the best chain security.

Related Products

• 6mm bolts
• Tanpan - allows Shimano mountain bike rear derailleurs to be used with Shimano road shifters
• RoadLink - allows for wide range cassettes to be used with Shimano road rear derailleurs

Tech Specs

Weight: 36t • 58g  |  38t • 66g  | 40t • 74g  |  42t • 81g
Material: 7075-T6 aluminum
Made in the USA

Patent and trademark information
