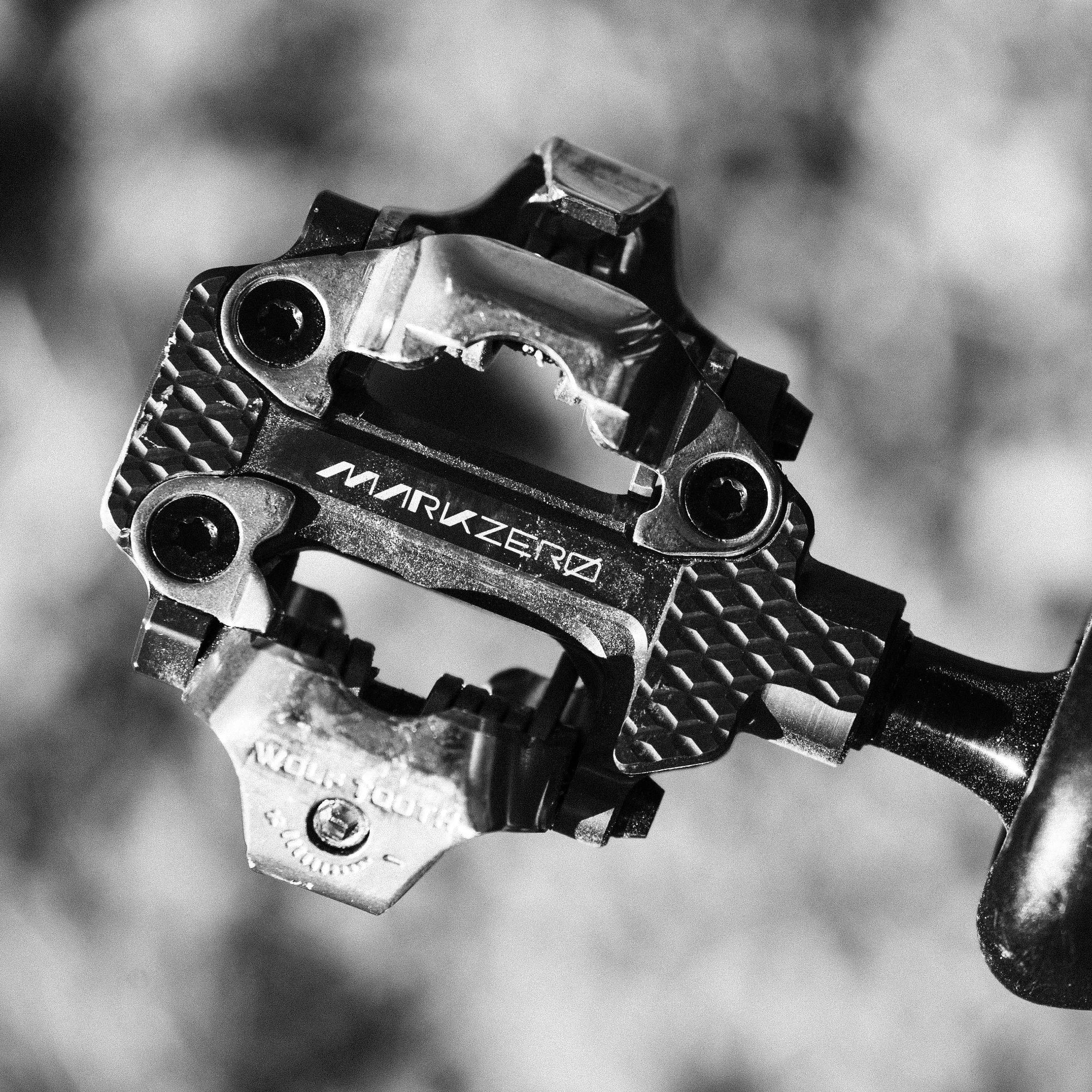

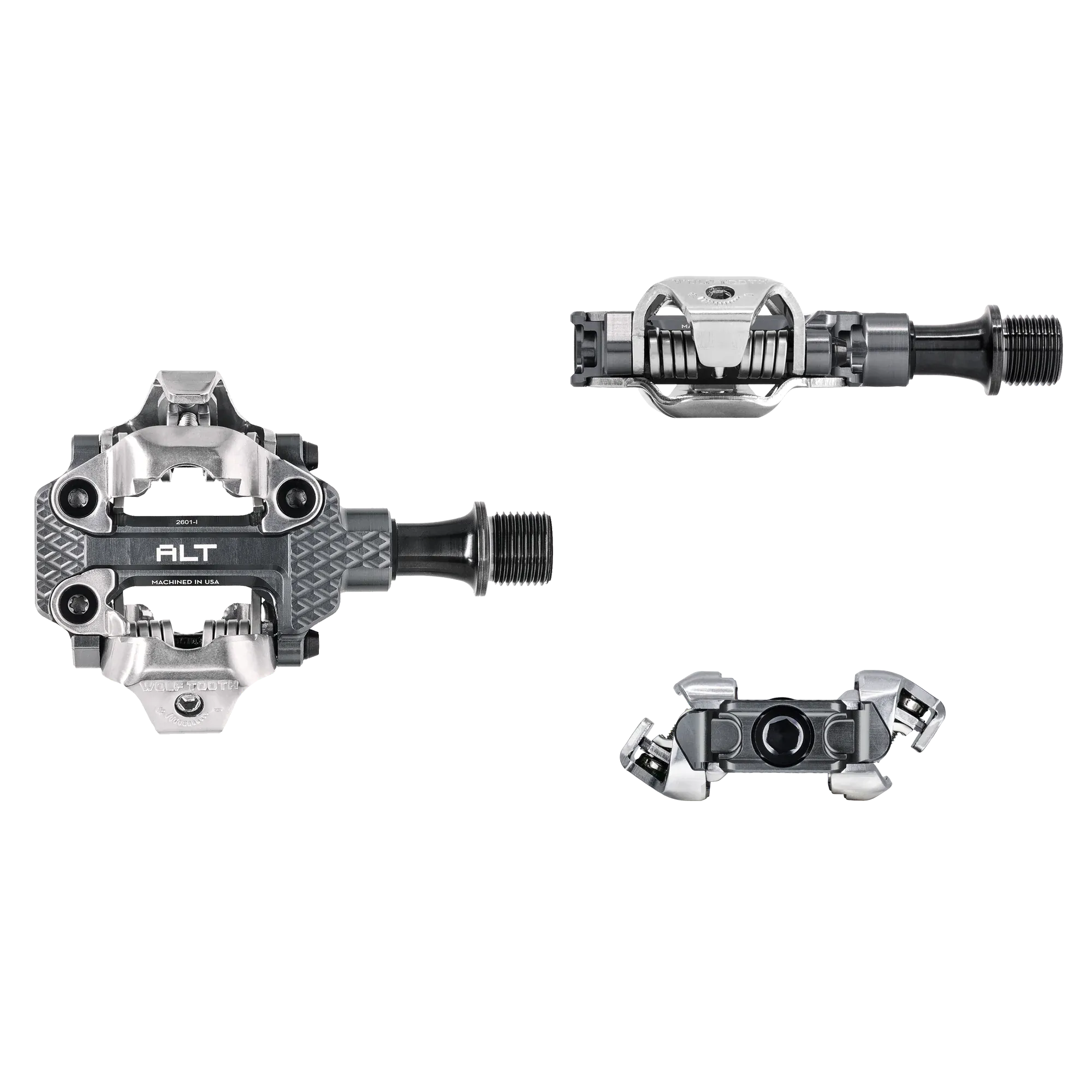

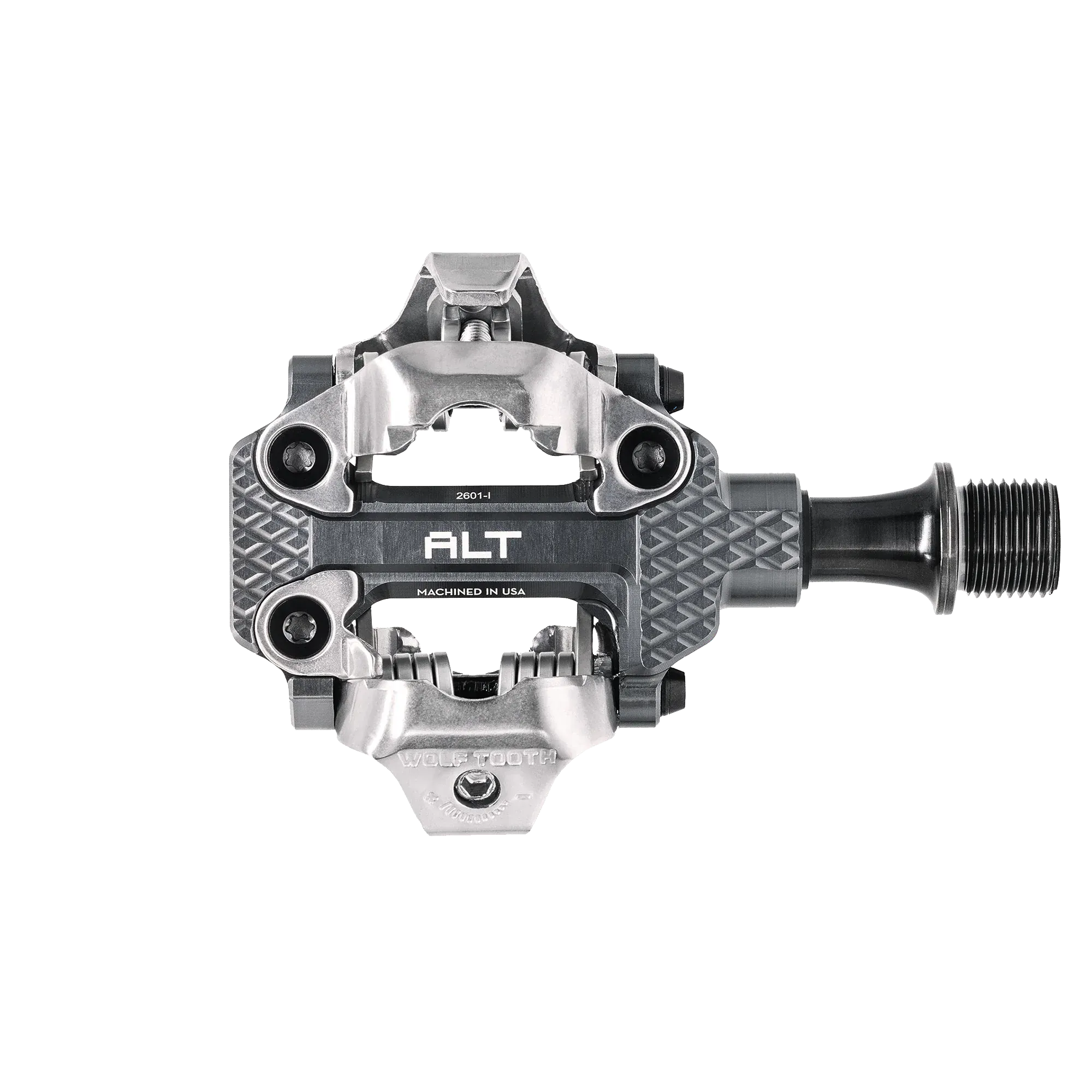

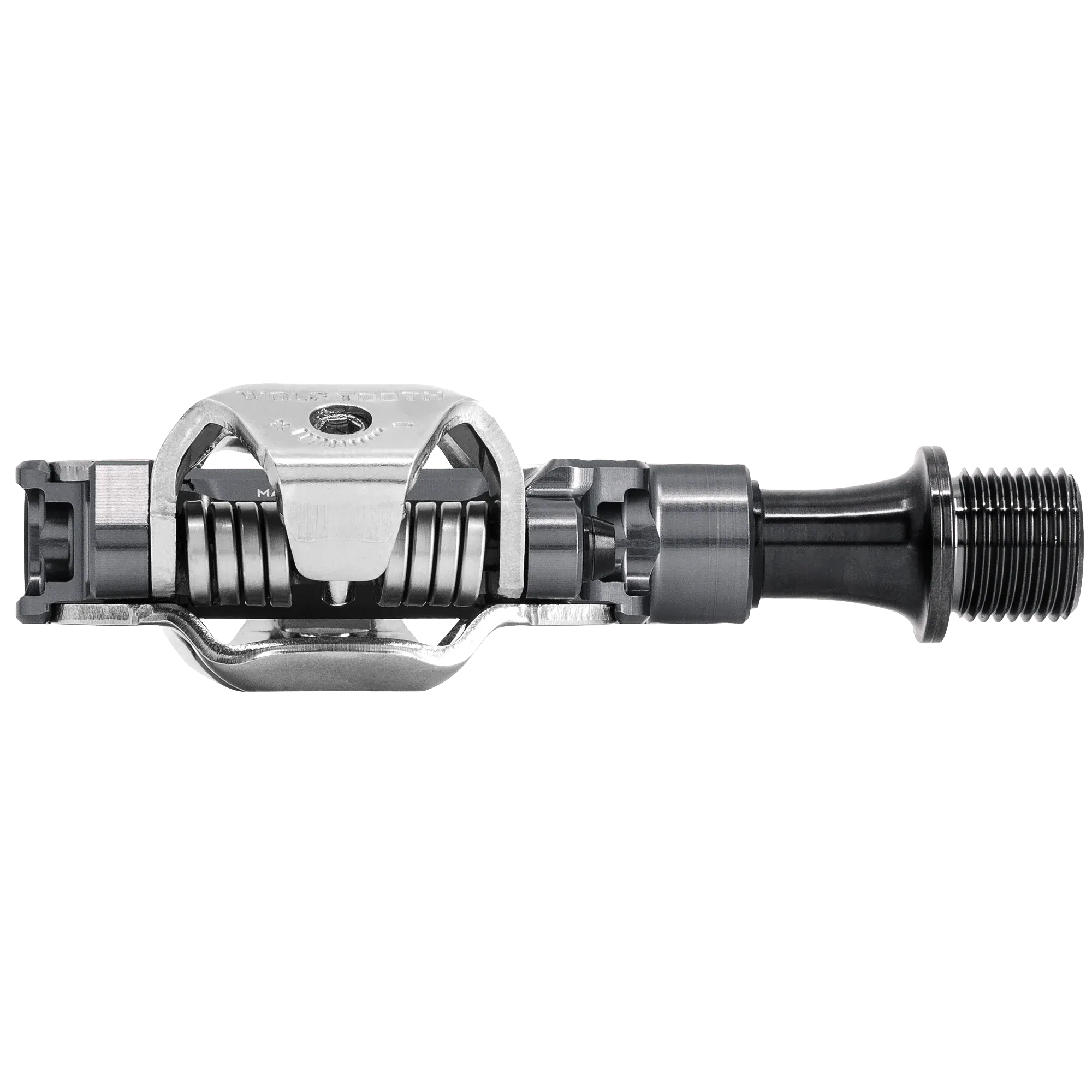

MK0 ALT XC Clipless Pedal

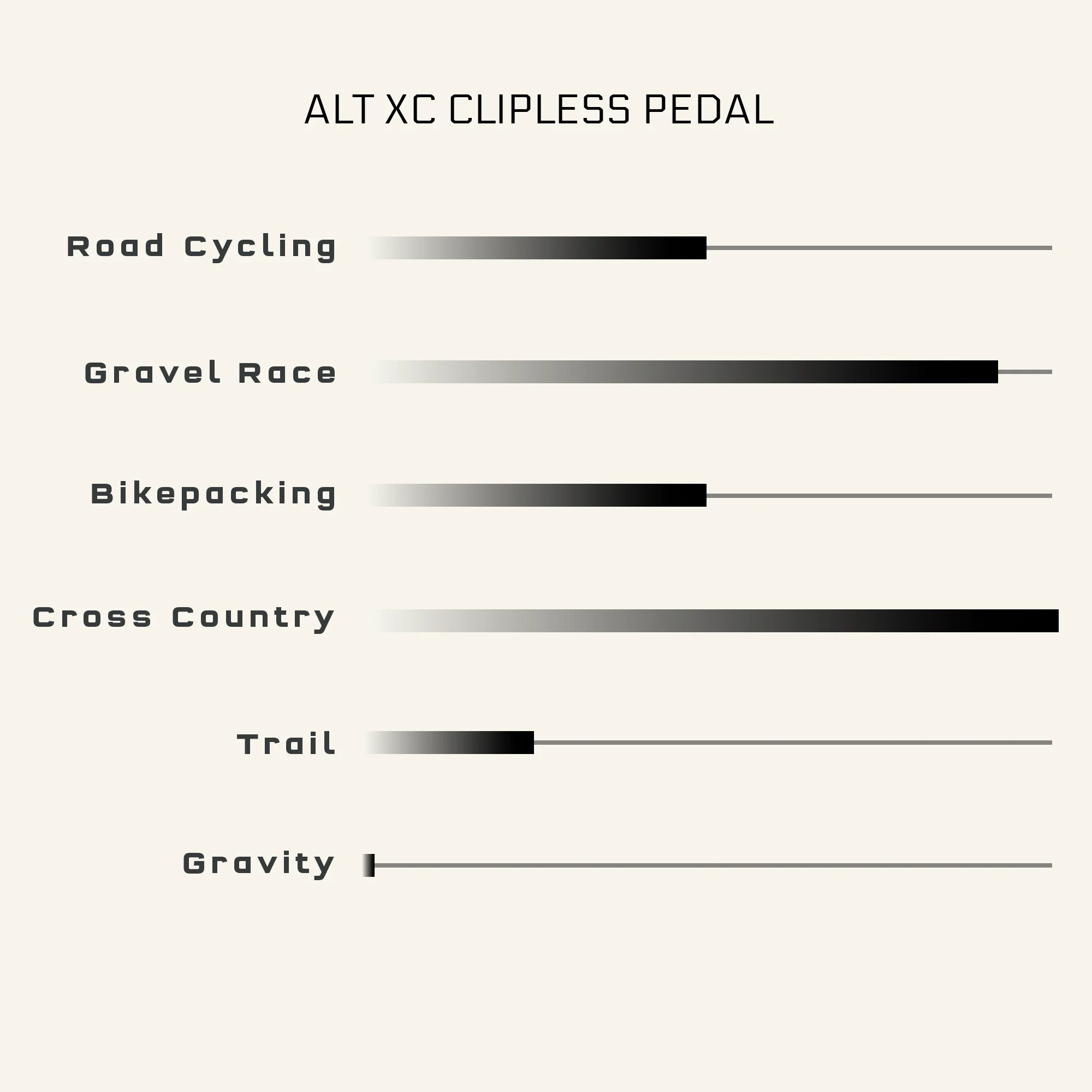

Wolf Tooth MK0 ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.

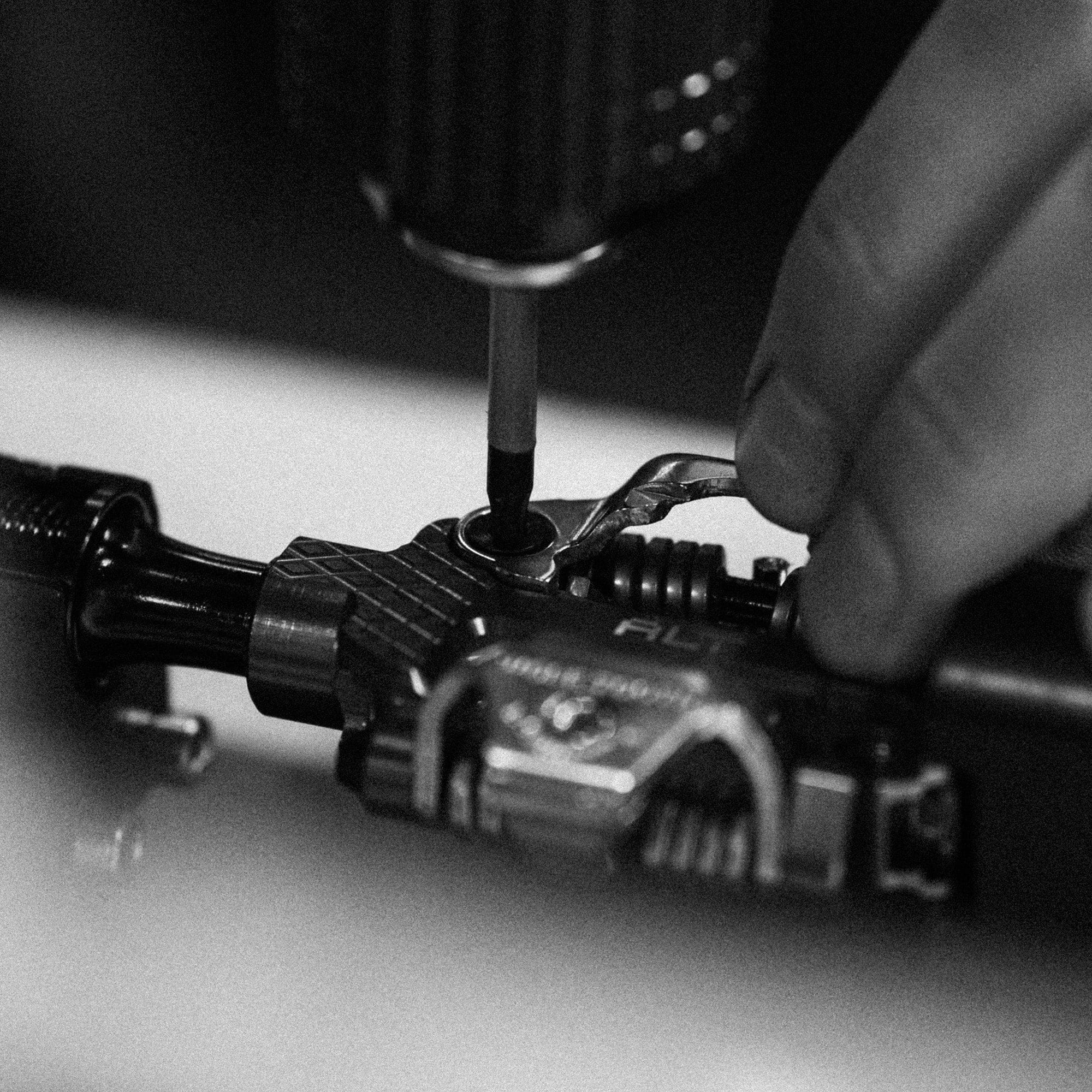

The MK0 ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.Â
- Thinner than the competition at 14.5 mm (compared to HT M2T at 17.5 mm, Shimano XTR 9200 at 16.5 mm and Hope RC at 18 mm)
- Lighter than the competition at 246 g per set (compared to HT M2T at 260 g, Shimano XTR 9200 at 316 g and Hope RC at 322 g)
- Larger platform area than the competition at 413 mm² (compared to HT M2T at 357 mm² and Shimano XTR 9200 at 144 mm²)
- Adjustable Q factor options of 51, 55, and 59 mm. Pedals ship in 55 mm position.
- 5 degrees float | 12 degrees release
- SPD compatible
- Proven axle and bearing design with three cartridge bearings and one igus bushing for smooth operation and long life
- Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
Compatibility
- Compatible with SPD cleats; Wolf Tooth cleats included
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Tech Specs
Weight: Â 246g
Thickness: Â 14.5 mm
Platform Area: 413 mm²
Max Rider Weight: Â 200 lbs / 90 kgÂ
Material:
Body: 6061-T6 aluminum CNC machined
Axle: titanium with diamond-like carbon (DLC) coating
Binding Cage: stainless steel
Hardware: PVD-coated titanium
Cleats: stainless steel

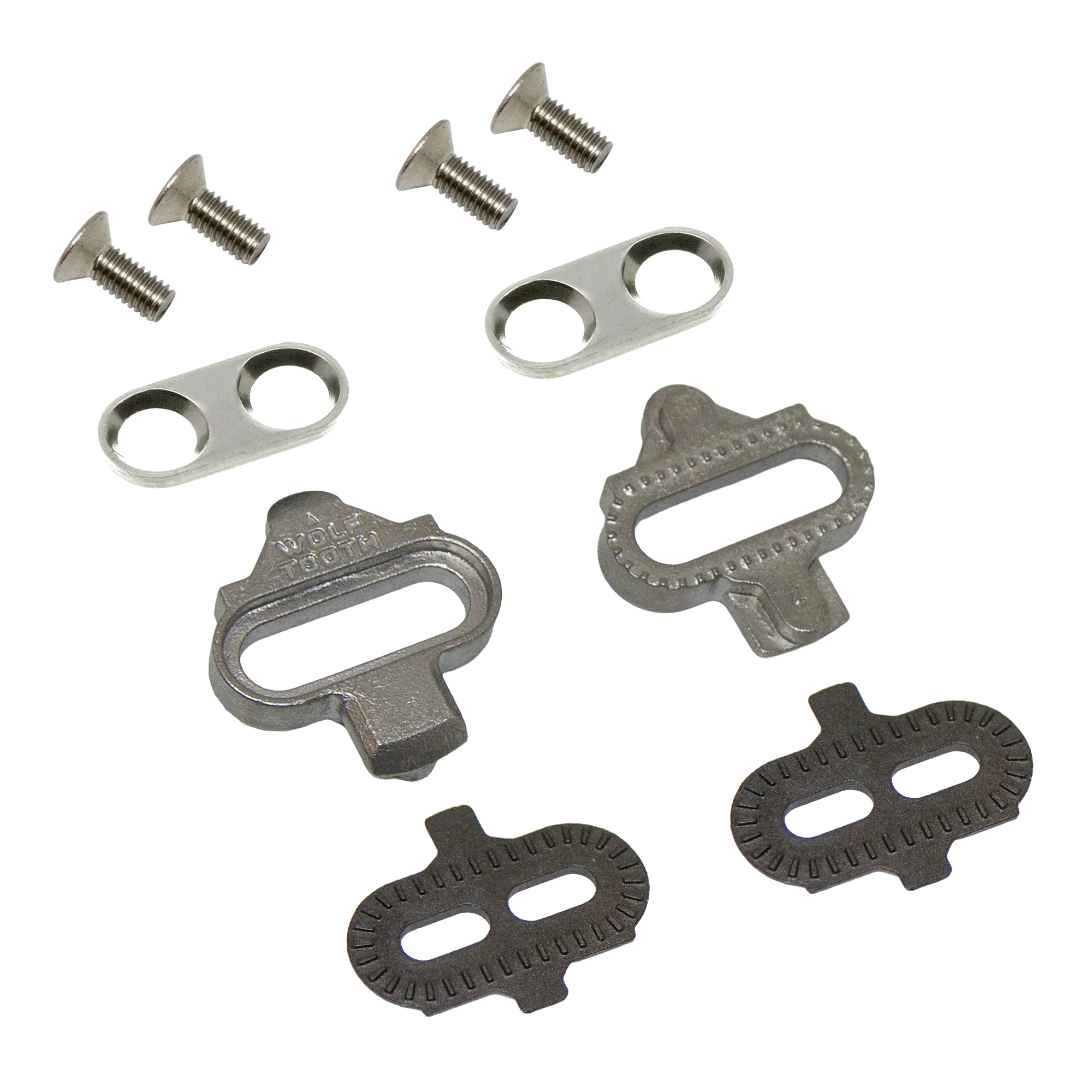

Included: Â pedals, cleats with shims and bolts
Patent Pending
Machined in the USA
Patent and trademark information
