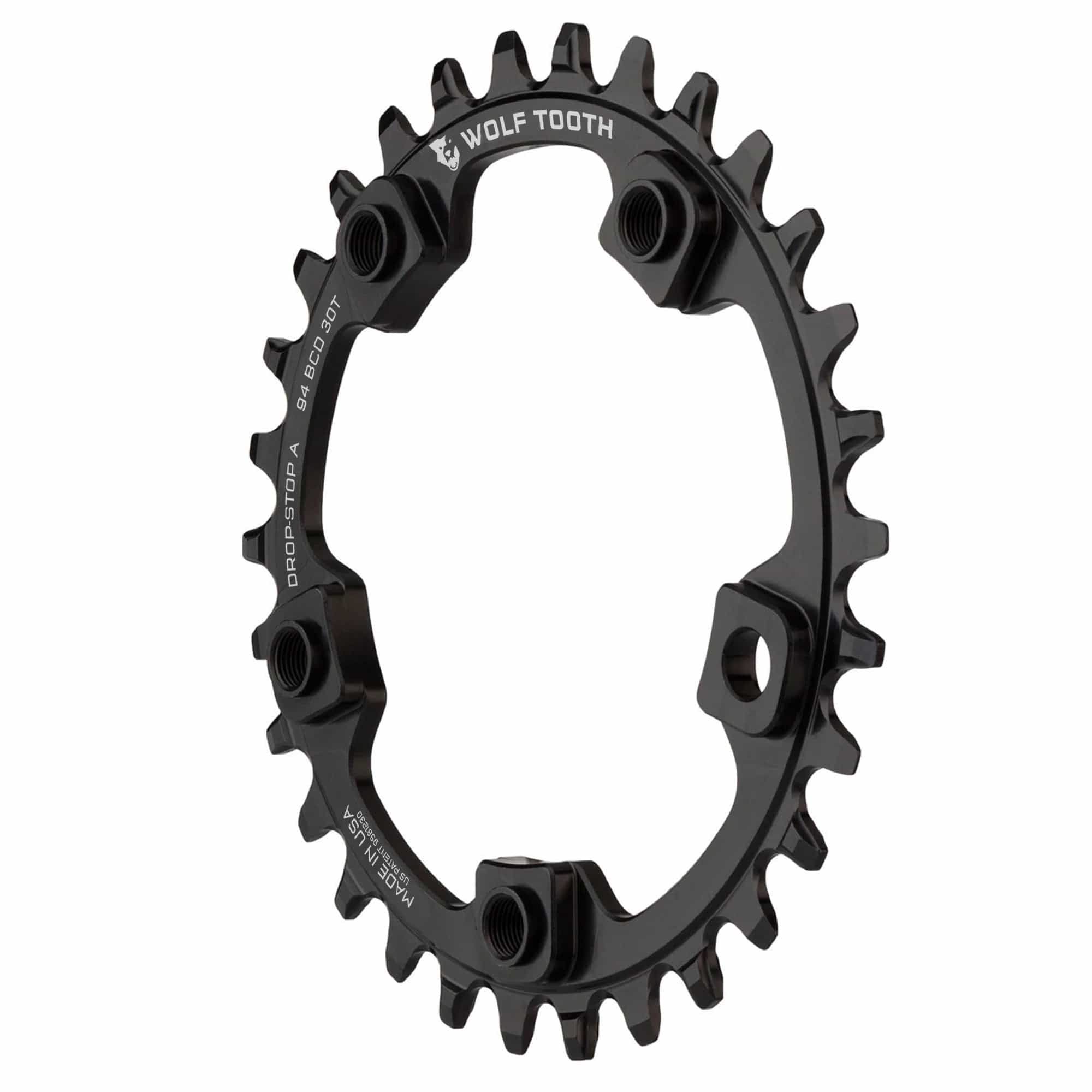

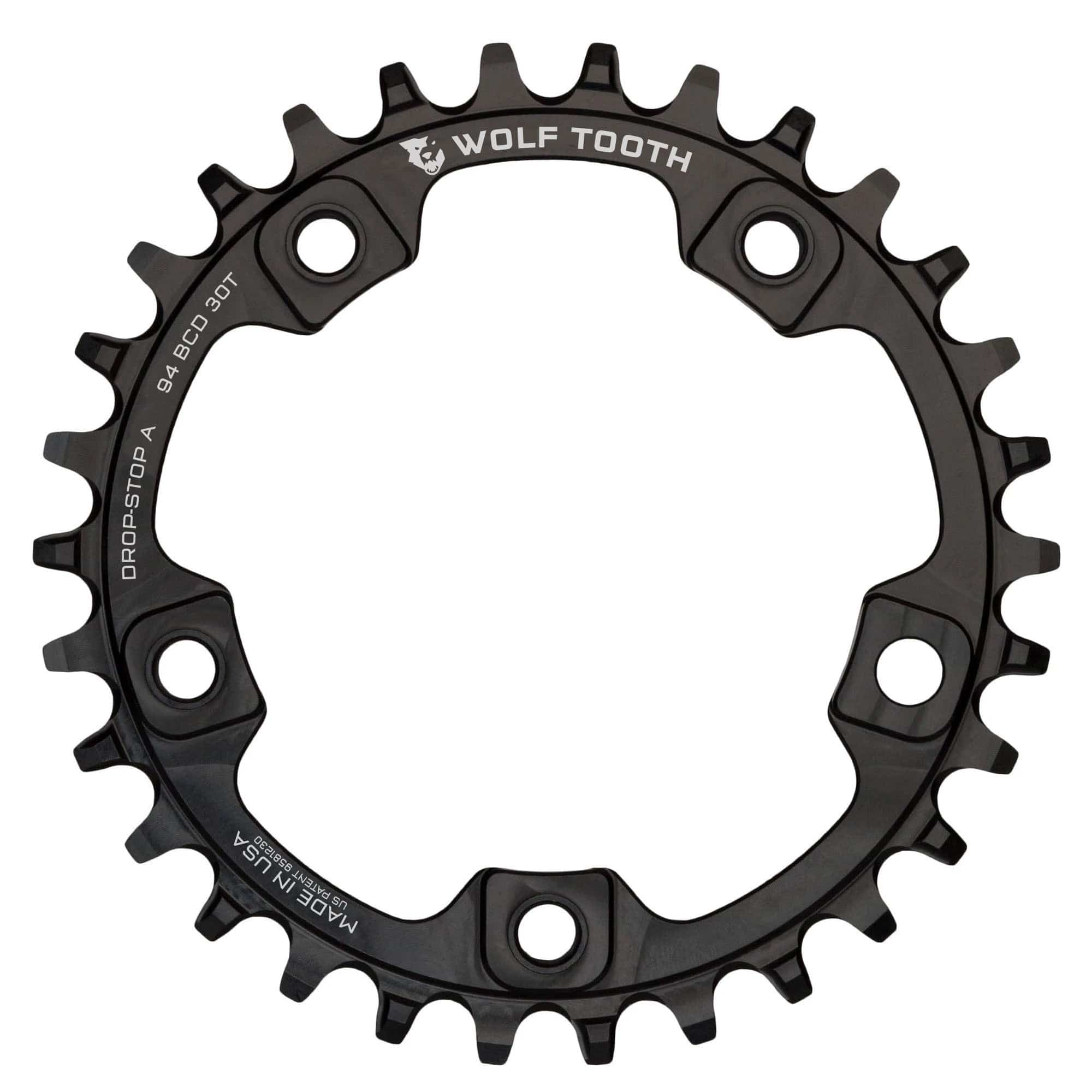

94 mm BCD for 5-bolt Cranks

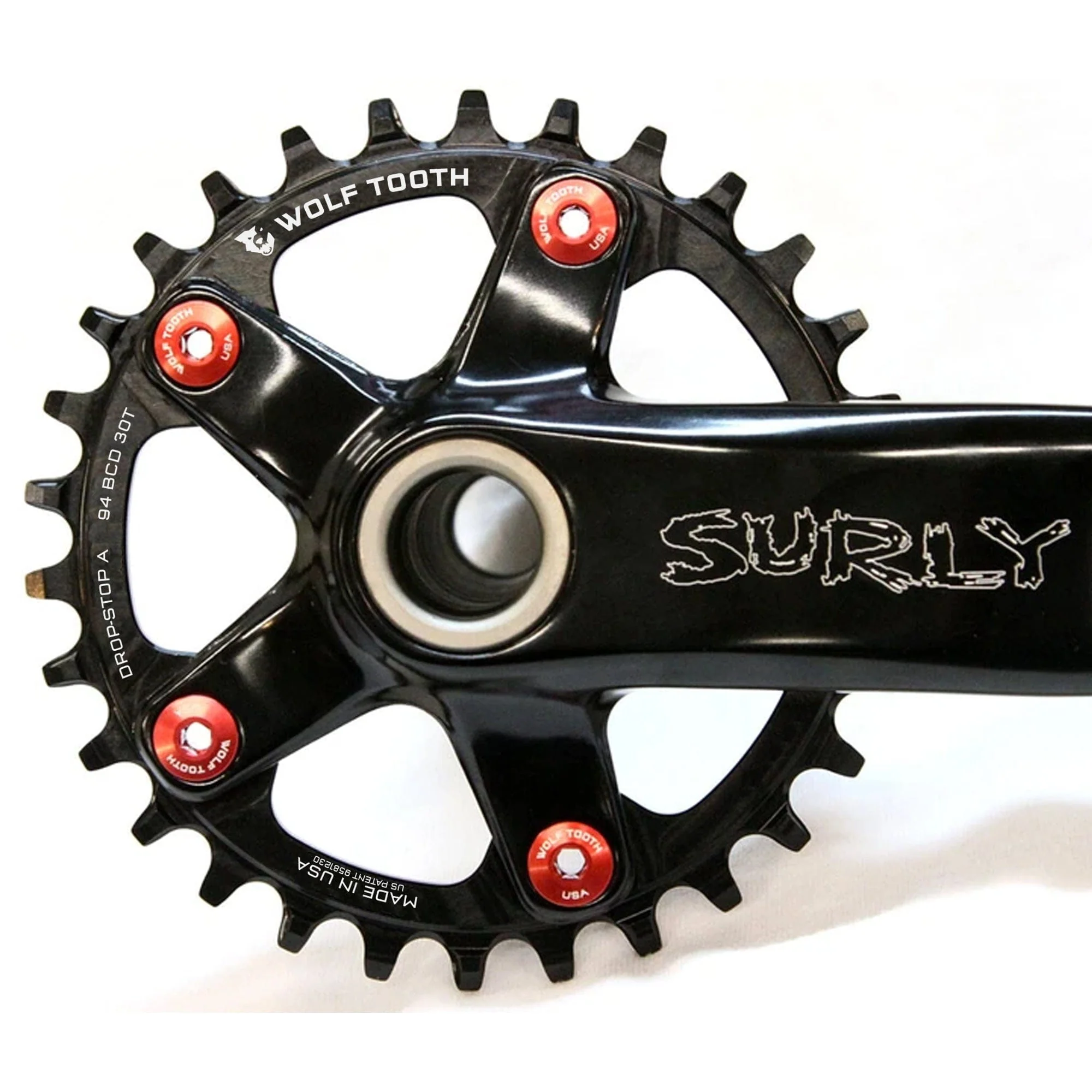

This 94 BCD 5-bolt ring will serve all your Vintage crankset and Surly OD crankset needs.Ā Ā
-
Fits anyĀ 94 BCD 5-bolt crankset (modification may be needed)
-
Drop-Stop technology. On Wolf Toothās patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
-
Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility

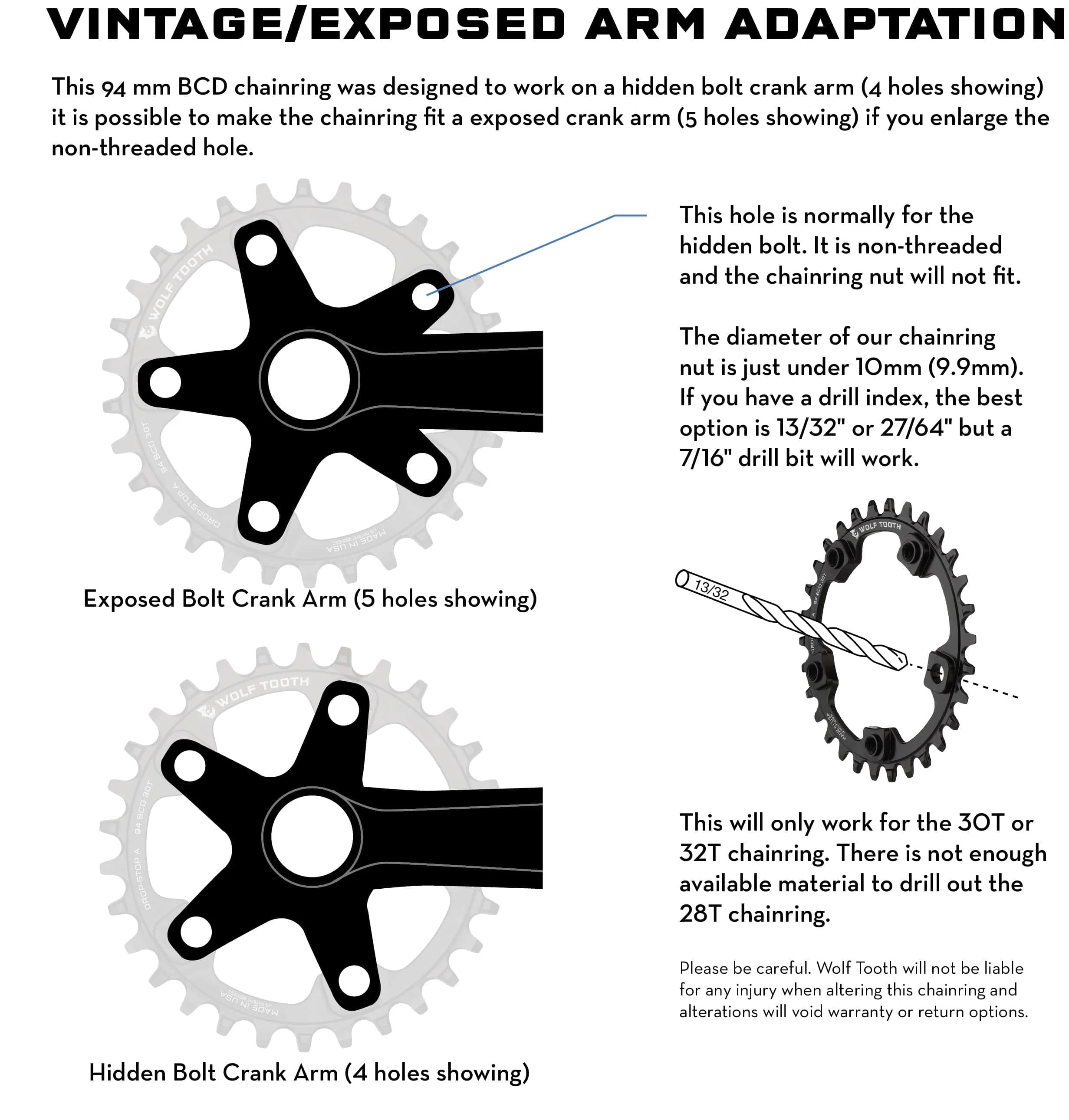

- Four of the holes are threaded andĀ one is a normal through bolt hole (done for Surly compatibility). Use a stock 10mm chainring bolt for the fifth, hidden arm.
- These rings fit any 94Ā BCD 5 bolt crankset (possible alterations needed to fit some crankarms)
- For Plus size bike applications with the Surly OD crankset, e.g. Instigator and Krampus,Ā you will need to use the stock spacers (Spacer Kit QBP Part number CR8609) that came with your 1x setup. You will also need some 16mm bolts which can beĀ purchased from Problem Solvers.
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provides a great chainline on most boost bikes.
- Chainline (approximate as BB centering and cranksets vary)
Ā
Recommendations
- If you plan to ride in very muddy conditions, we recommend aĀ chainguideĀ orĀ chainkeeperĀ in addition to a clutch-type rear derailleur. Without these precautions, you may experienceĀ chaindropsĀ and/orĀ chainsuck.
Related Products
Chainring bolts that are optimized for 1x
- For use with Surly OD cranks on fat bikesĀ -Ā ourĀ 10mm boltsĀ are optimized for mounting this ringĀ
- For use with vintage cranksets weĀ recommend a set of our 10mm boltsĀ and you will use your existing bolt/nut for the 5th hole. Ā
- No Wolf Tooth bolts available for Plus size bike applications with the Surly OD crankset (see compatibility notes above)
Tech Specs
Weight:Ā 28t ā¢ 37gĀ |Ā 30 ā¢ 48gĀ |Ā 32t ā¢ 57g
Material:Ā 7075-T6 aluminum
Made in theĀ USAĀ
Patent and trademark information
